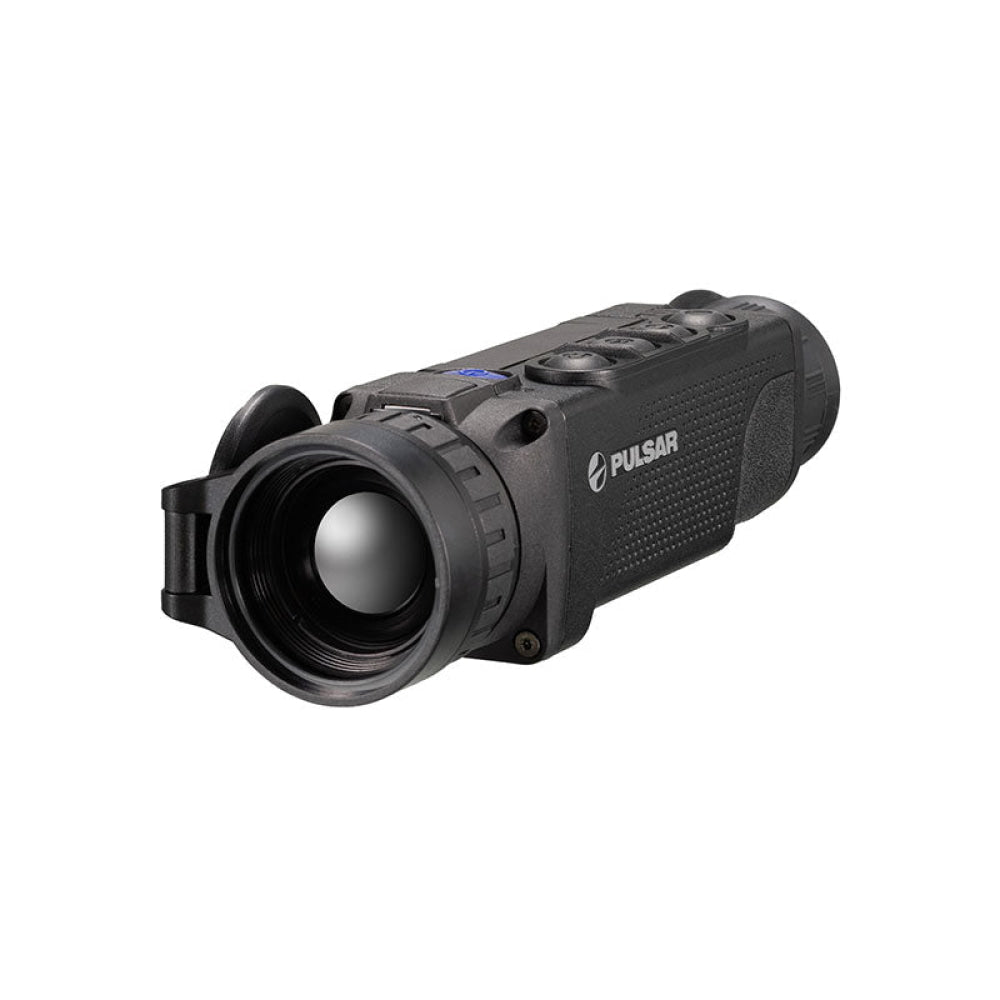

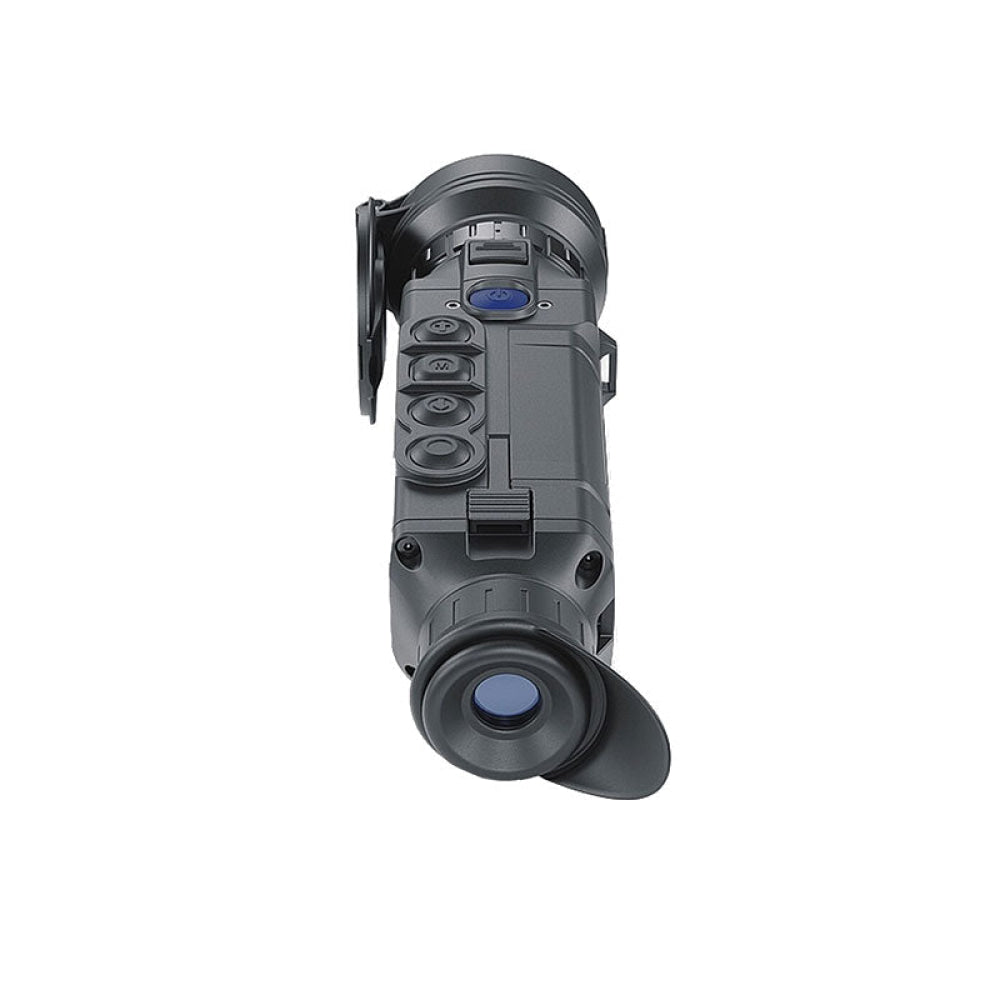

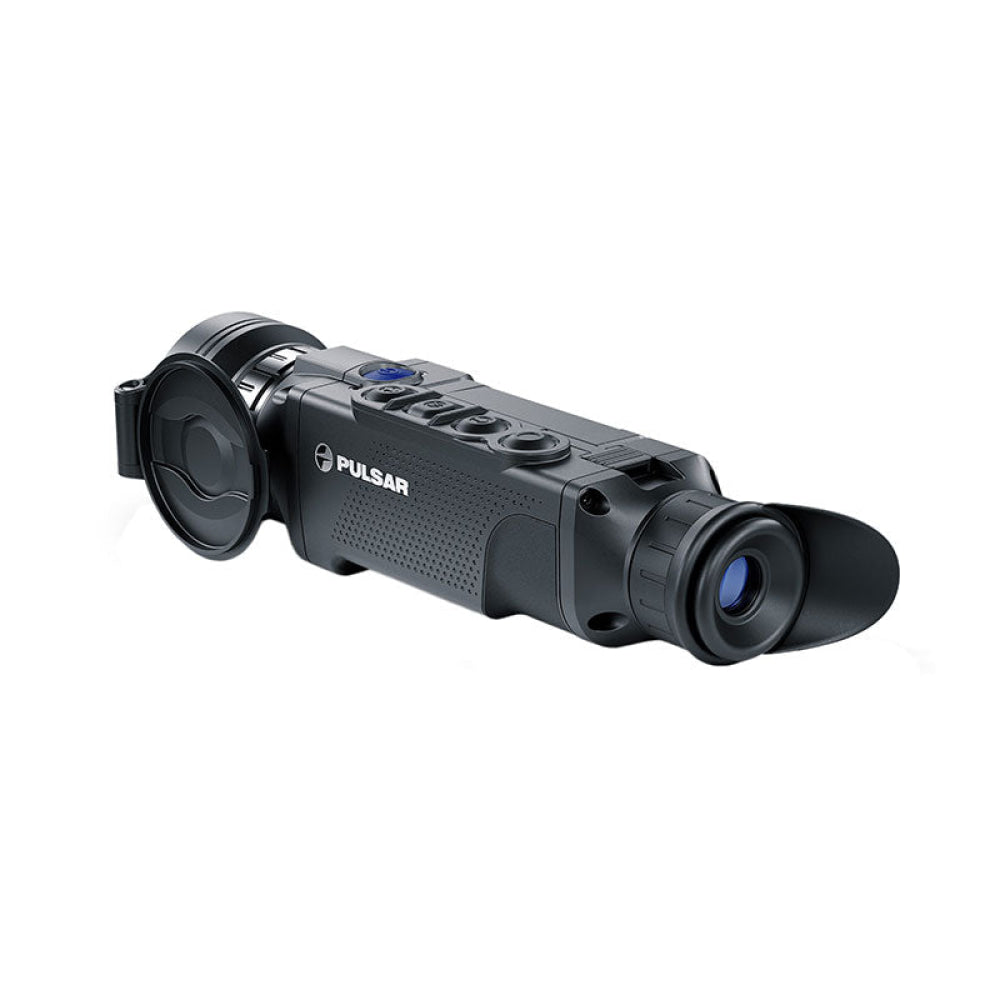

THERMAL VISOR - PULSAR HELION 2 XQ38F 3-12X38

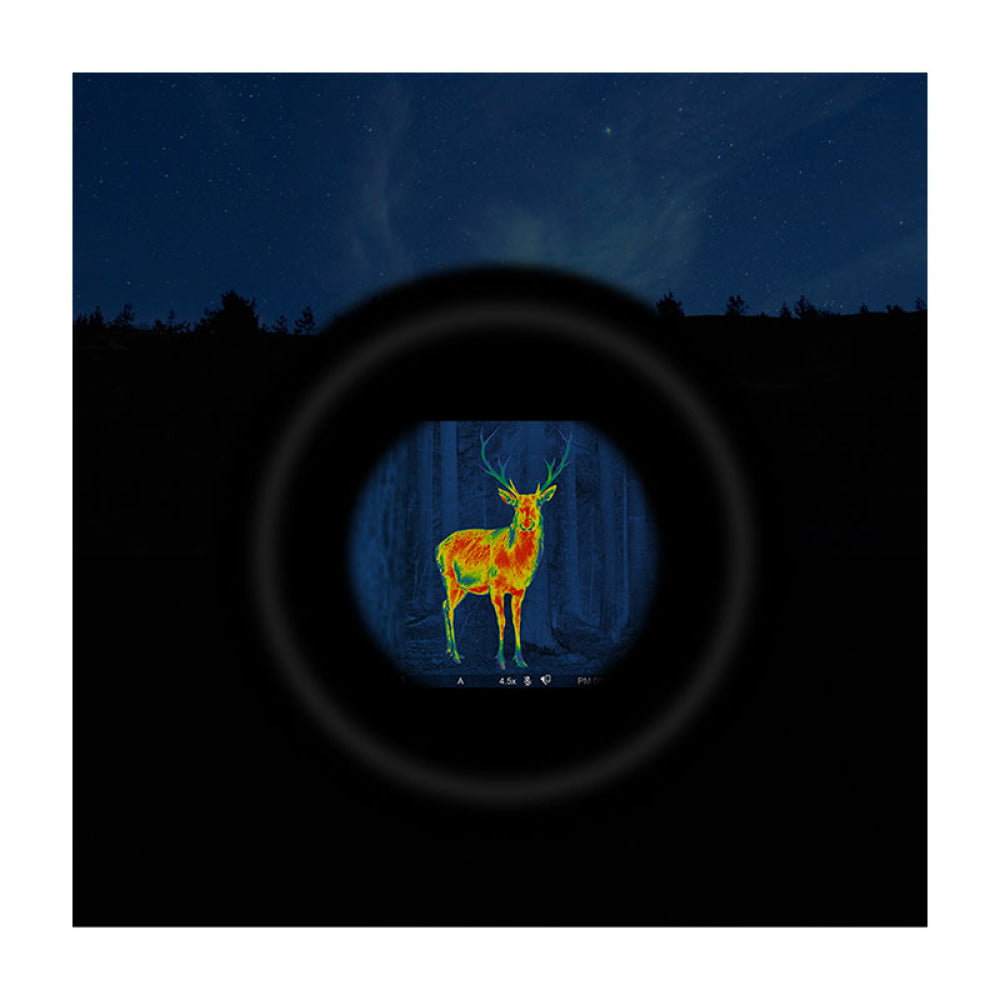

Highly sensitive thermal imaging sensor. An advanced NETD <40 mK sensor produces precise detail recognition imaging even in adverse weather conditions such as rain and fog. Even when thermal contrast is low, small temperature differences are clearly visible with high-contrast, high-resolution imaging.

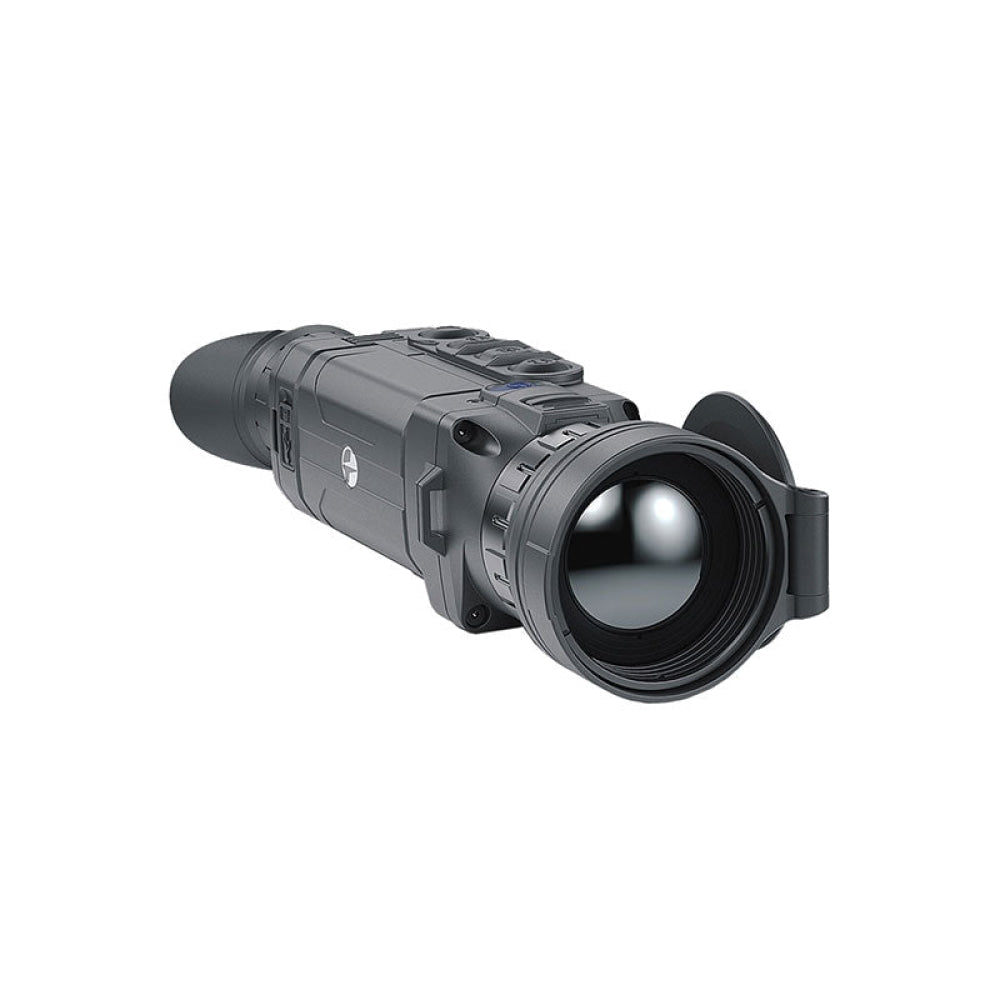

Large aperture lenses
The characteristics of the thermal imaging optics decisively determine the ability of the thermal imager to capture even the lowest levels of radiation. Combined with high-sensitivity sensors, the large-aperture lenses of the Helion 2 XQ38F (F35/1.0) and Helion 2 XQ50F (F50/1.0) thermal imagers provide maximum detection efficiency. During rain or fog, when the temperature contrast of the observed scene is minimal, the Helion 2 XQ user always has a maximum quality, detailed, contrasting and informative image.

HD AMOLED color display
The new AMOLED display with 1024x768 HD resolution features better color reproduction, lower power consumption, high contrast and fast response times, providing clear and smooth images when observing on the move or in cold conditions.

Image Boost Technology
Pulsar's patented Image Boost technology is a software algorithm designed to improve image sharpness and overall image detail. Using Image Boost makes the image sharper and more detailed, as well as the ability to identify objects.

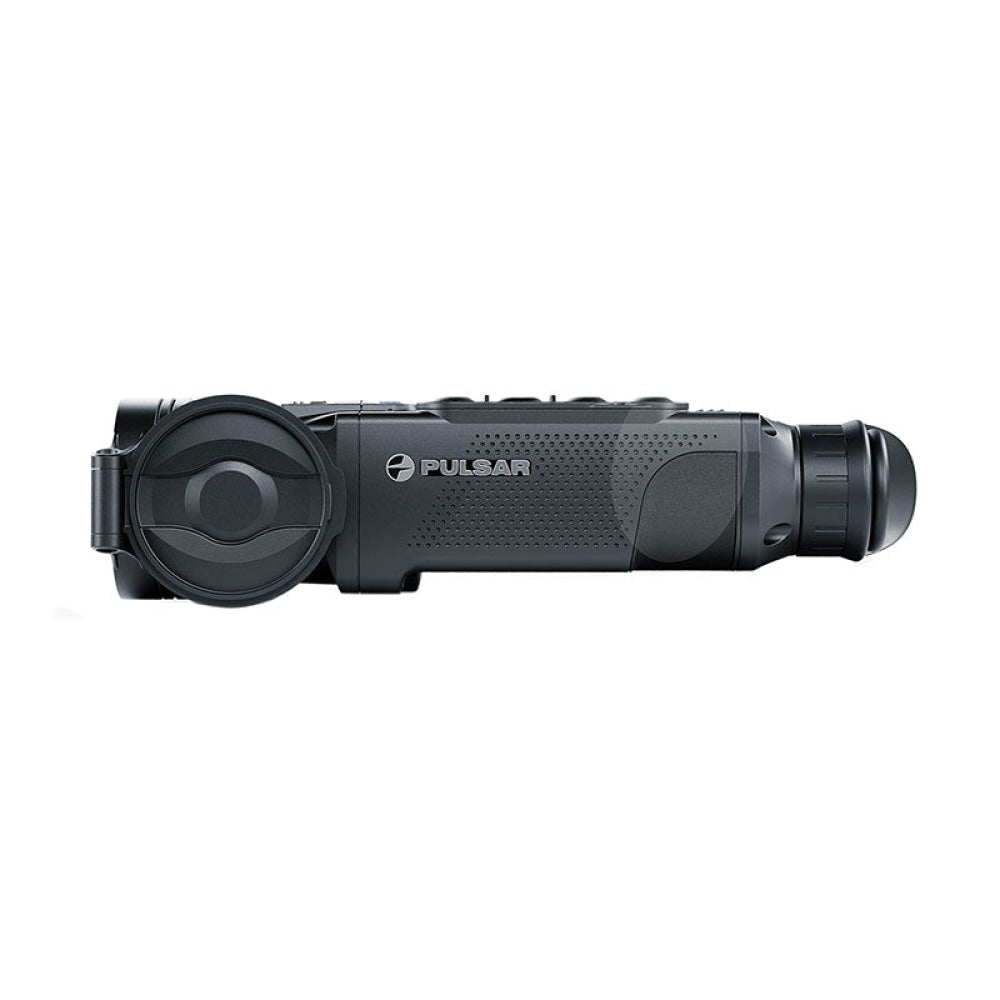

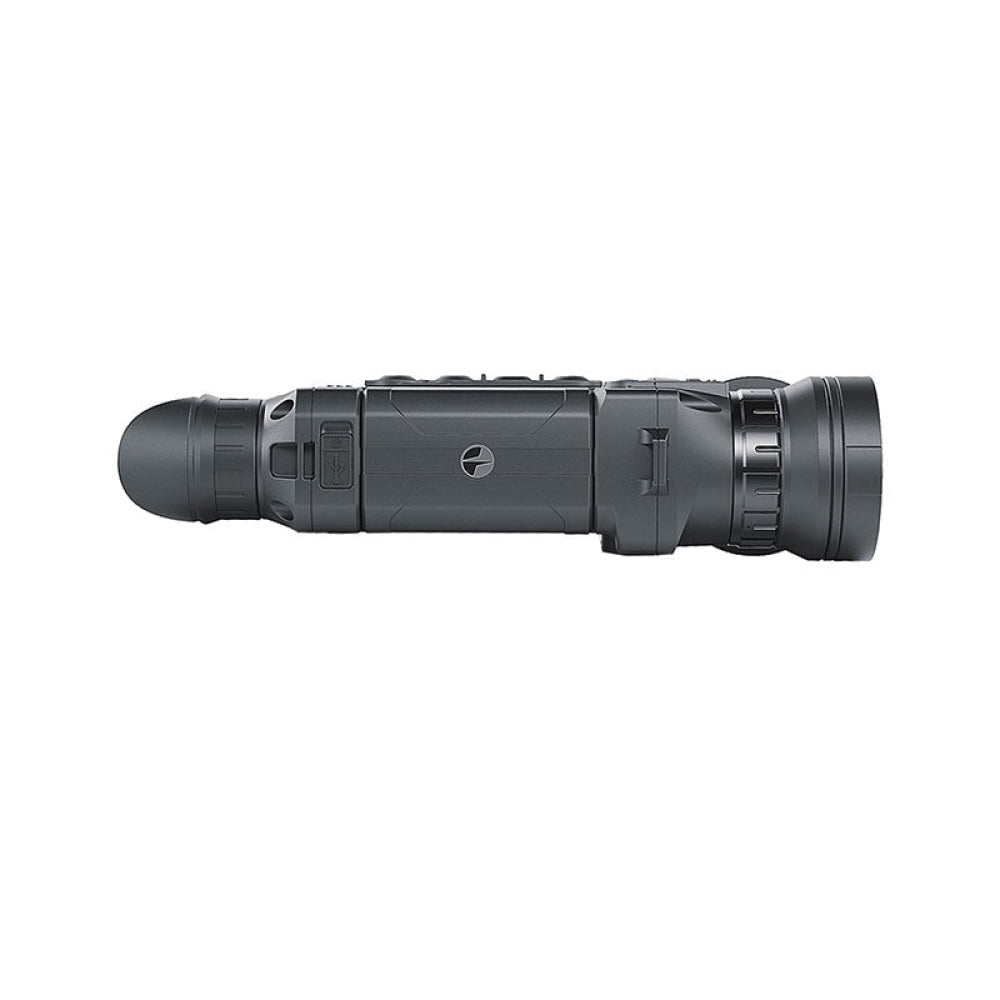

Robust magnesium alloy body
The lightweight magnesium alloy body is characterized by high structural strength and resistance to external mechanical and climatic stress. The body material effectively removes and dissipates the heat generated by the operation of electronic components, ensuring consistent operation of the thermal imager and high image quality during long-term observation.

Variable magnification
Helion models include variable magnification, up to 8x depending on the model, and have both a 2x regular graduated magnification for a truly optimal, customized field of view.

Long detection range
Powerful objective lenses combined with a professional-grade thermal imaging sensor with NETD 40 mK provide exceptional targeting ability. A standard 1.8 meter tall object can be spotted from a distance of 1800 m (Helion XQ50F) / 1350 m (Helion XQ38F) in total darkness.

Built-in video recorder
The Helion 2 is equipped with a recorder that allows the recording of videos and images at the time of observation. Video and photo files saved in the internal memory can be transferred to your computer via cable or to your phone via Wi-Fi.

Wifi. Compatibility with IOS and Android devices
The integrated WiFi module allows the device to be connected to Android and IOS smartphones via the Stream Vision mobile app. This makes it possible to use various features: wireless software updates, real-time image transmission to the mobile device screen, remote control of digital functions and much more. Users registered in the application are allocated cloud storage space for photos and videos taken with a thermal or digital device. An important aspect is that the device remains compatible with the previous, first version of Stream Vision.

Latest generation viewer that implements a thermal sensor <40 mK capable of producing notable contrast and precise detail recognition even in adverse weather conditions.
1024x768 pixel AMOLED HD display, Image Boost technology for greater image clarity, 2x digital zoom and detection capacity up to 1350 m.

Integrated photo and video recording functions, live streaming via Stream Vision app to view and playback images in real time on YouTube or compatible smartphone and tablet devices, WiFi connectivity for iOS/Android operating systems, easy-to-read display for immediate and convenient use intuitive.

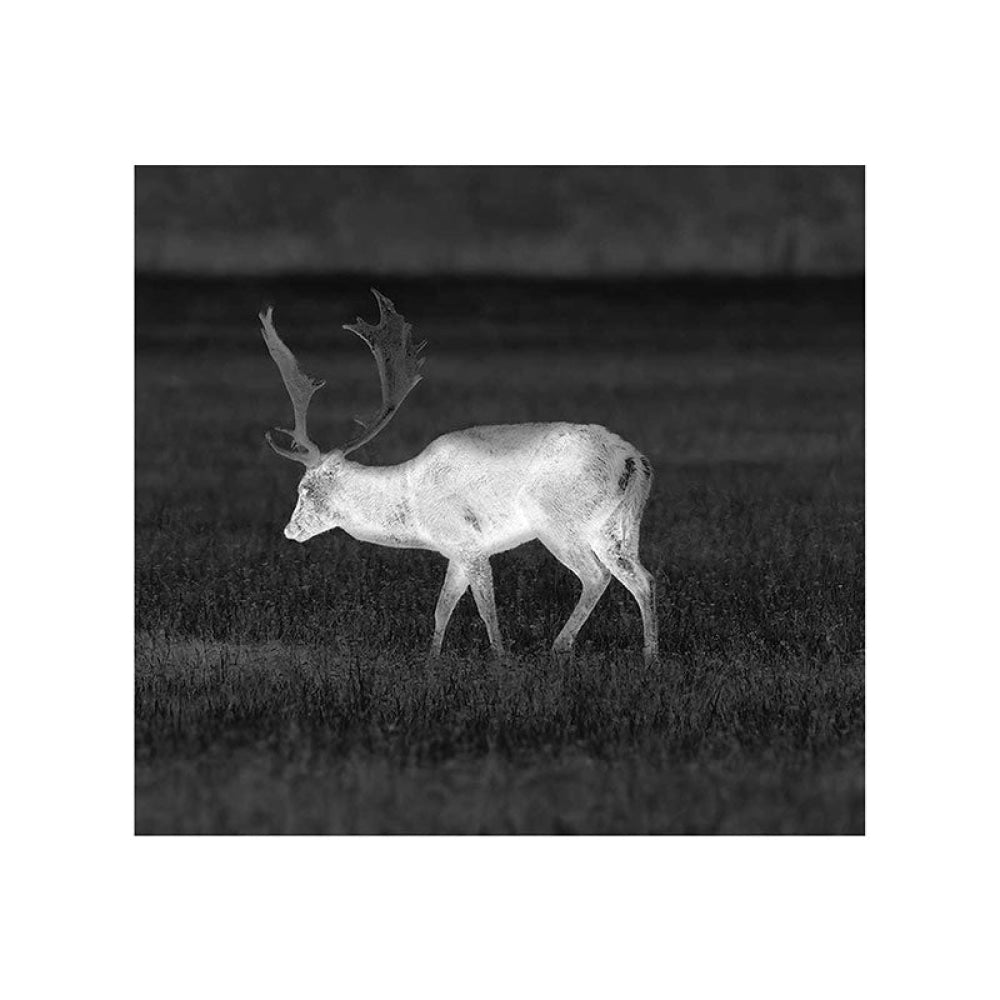

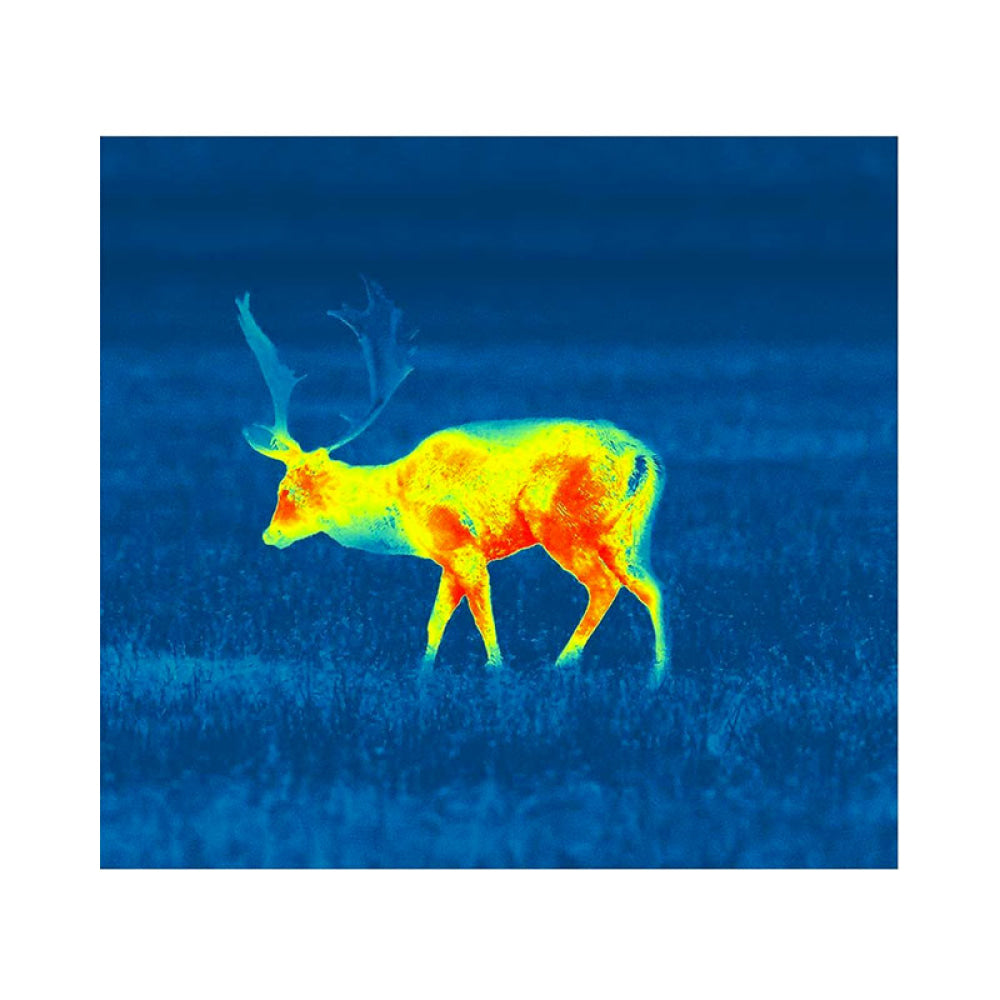

8 different usable color palettes, 4 observation modes and 3 settable calibration modes (Manual/Semi-automatic/Automatic).
Robust construction of ultra-light magnesium, effectively removes and dissipates the heat generated by the operation of internal electronic components, ensuring high quality of vision during long-term observation.

Sensor type: 17µm NETD
Sensor resolution: 384x288 pixels
Frame rate: 50Hz
Display: AMOLED HD 1024x768 pixels
Magnifications: 3-12x
Lens diameter: 38mm
Eye relief: 15 mm
Linear field of view: 17.2 m @ 100 m
Angular field of view: 10.7°
Exit pupil: 5 mm
Minimum focusing distance: 3 m
Diopter adjustment: ± 5
With stadiametric rangefinder function
16GB internal memory (over 5 hours of video recording/over 100,000 photos)
Quick-release 6400mAh battery pack with IPS7 waterproof rating (microUSB-C rechargeable)
Autonomy of approximately 9 hours (with the possibility of using compatible power banks for a longer duration)
IPX7 waterproof (up to 1 m for 30 minutes)
Dimensions: 234.6x55x58 mm
Weight: 450g
