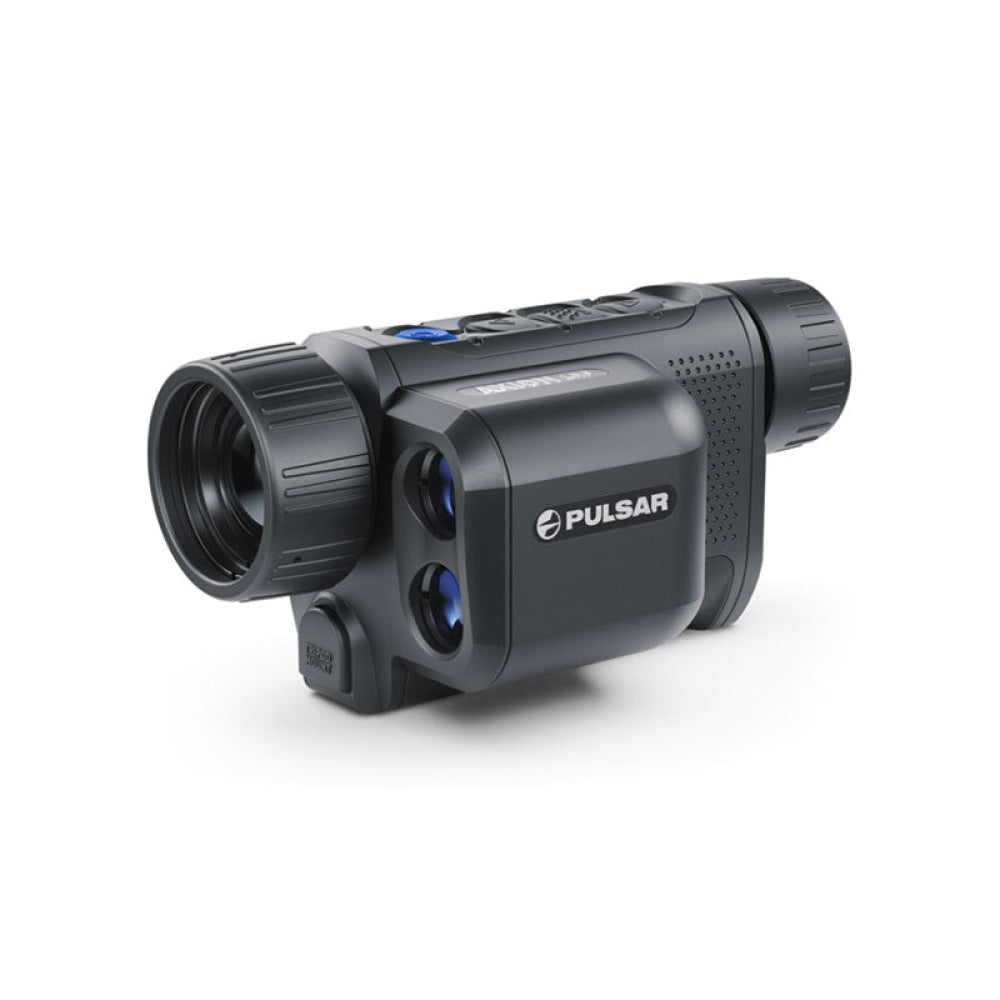

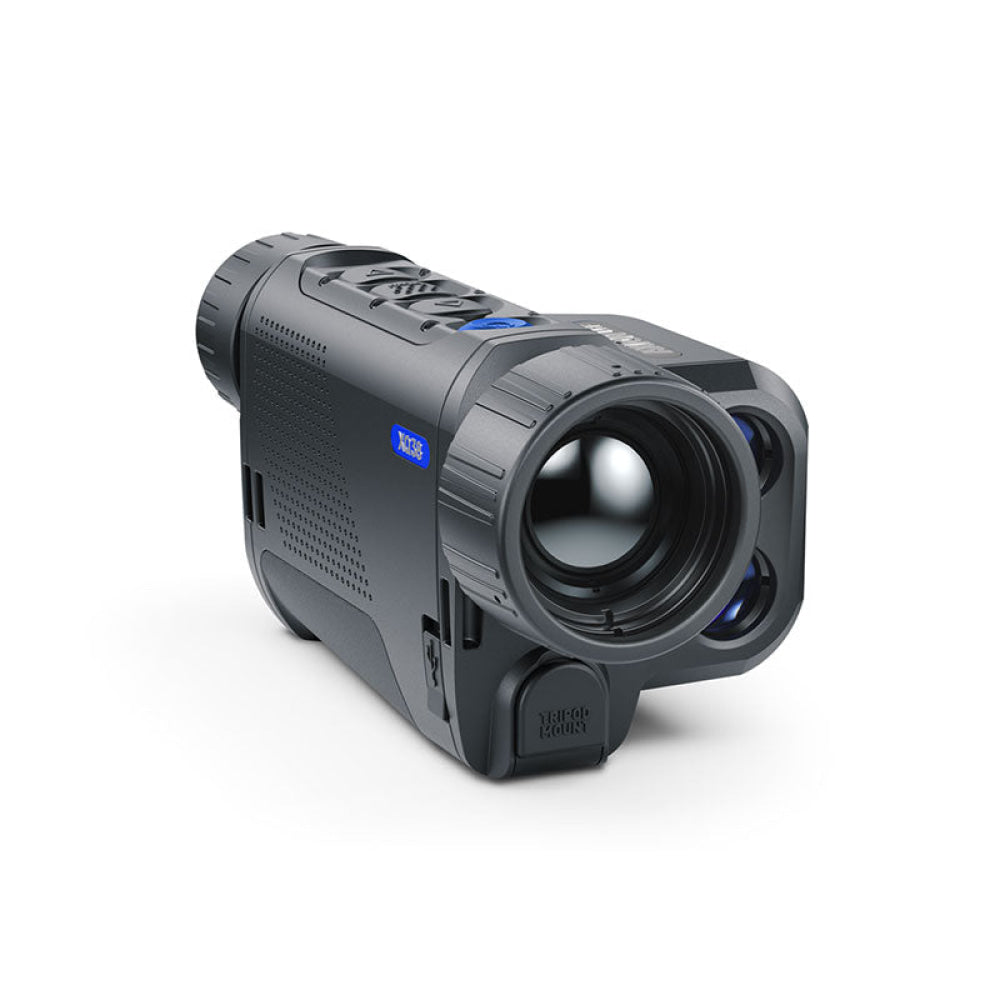

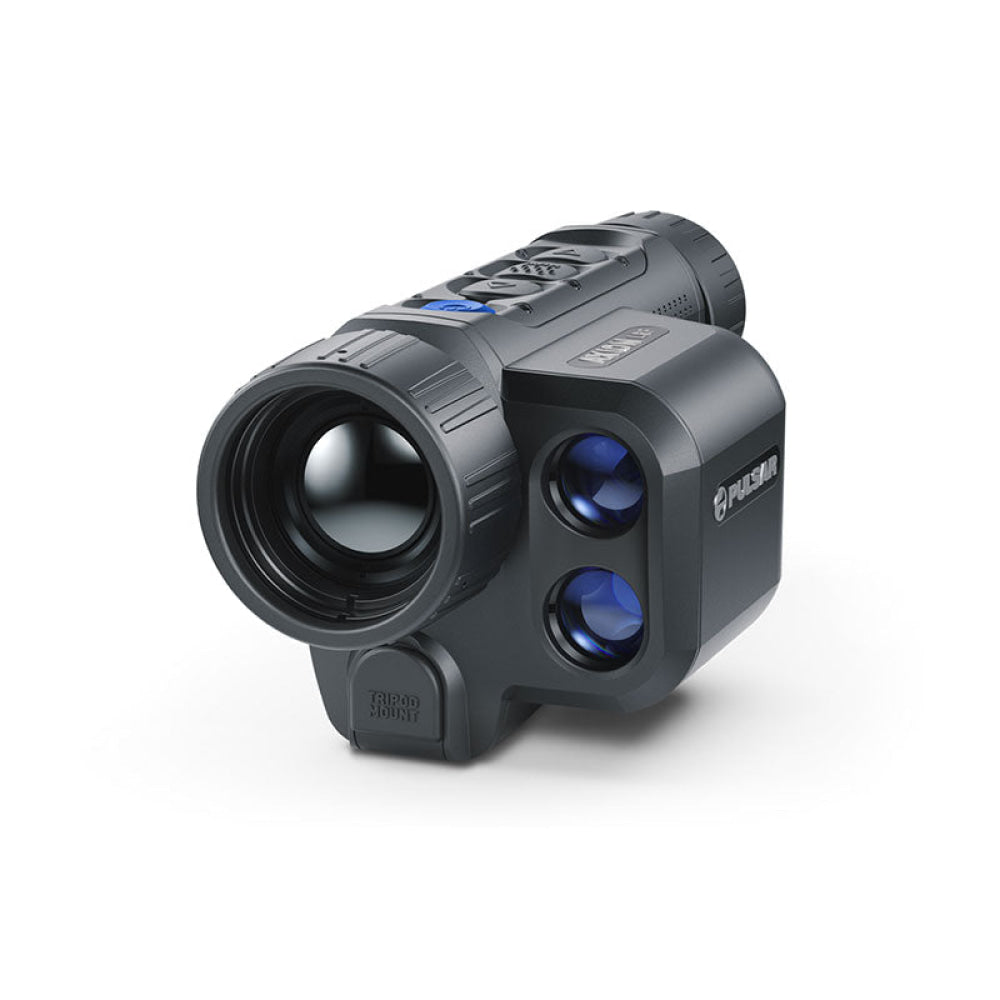

PULSAR - AXION XQ38 LRF VISOR

Built-in high precision laser rangefinder
The built-in high-precision laser rangefinder provides accurate range measurement in two modes - "Single Measurement" and "Scan Mode" - with an accuracy of ±1m at a distance of 1km. Precise distance values ​​help you quickly estimate the size of the area, the distance to the object and the terrain.

Highly sensitive thermosensor
The Axion The slightest temperature differences will be clearly visible in rain, fog or cold mornings - in the most difficult conditions for the thermal imager.

Robust and lightweight magnesium alloy housing
Lightweight magnesium alloy housing provides high rigidity and strength. The monocular is ideal for long outdoor trips as it is lightweight yet highly efficient.

Detection distance up to 1,300 meters
The powerful F38/1.2 lens combined with the high-sensitivity 384x288@17µm sensor provides exceptional detection capabilities. An object with a standard height of 1.8 m can be detected up to 1350 m in total darkness.

Image Boost Technology
Pulsar's patented Image Boost technology is a software algorithm designed to improve image sharpness and overall image detail. Using Image Boost makes the image sharper and more detailed, as well as the ability to identify objects.

IPX7 Fully waterproof
IPX7 Fully waterproof for protection from heavy rain, snow or other precipitation. Designed to work perfectly even after immersion in water up to 1m deep for 30 minutes.

Other features
HD AMOLED color display
The new HD display guarantees sharp, colorful and high-contrast images, while AMOLED technology provides a flawless and energy-saving high-resolution display.

B-Pack mini APS5 rechargeable battery
Quick-change high-capacity lithium-ion battery provides 7 hours of operation on a single charge. Quick and easy battery changes, combined with instant start-up, ensure continuous monitoring without interruptions. An external power source can be used as a regular portable charger connected via the USB Type-C connector.

Observation mode
The image is optimized depending on the location and environmental conditions. Rocks, cities and forests have different ambient temperatures. To achieve the highest possible image quality, some settings are optimized and collected into profiles. This makes it easier to process images in different environmental conditions. Preset identification parameters - another option to optimize the image, which facilitates identification, even over long distances.

Color palettes
Eight color palettes improve observation in variable conditions. While the classic White Hot mode is versatile, the Hot Black mode is often used to detect animals at night. Red monochrome allows you to reduce or prevent eyepiece illumination. Sepia tends to improve observation over long distances, while Red Hot, Rainbow and Ultramarine modes improve the display of temperature differences between different parts of an object. Purple mode helps identify an object more quickly.

Variable magnification from 3.5 to 14 times
A digital zoom of up to 14x allows for more accurate focusing and better overall object recognition at long distances. Multiplication is changed both unobtrusively, in 2x increments, and seamlessly, allowing the user to set the optimal magnification value in a specific viewing situation.

"Picture-in-picture" function (picture in picture)
The "Picture-in-picture" function shows an enlarged image at the top of the display in a window of 10% of the field of view for a more precise zoom of the object under observation.

https://youtu.be/q952WyJqQfA

Principal
Sensor
384x288 pixels. @ 17 µm (NETD <40 mK)
Objective lenses
F38/1.2
Magnification, x
3.5-14
Field of view (HxV), degrees / m @ 100 m
9.8x7.4 / 17.2x12.9
Detection radius, m
1350
Sensor
Guy
uncooled
Resolution, pixels
384x288
Pixel pitch, µm
17
NETD, mK
-
Frame rate, Hz
50
Optical devices
Objective lenses
F38/1.2
Magnification, x
3.5 - 14
Magnification in monocular mode / link mode, x
-
Field of view (HxV), degrees / m @ 100 m
9.8x7.4 / 17.2x12.9
Eye relief, mm
-
Recommended daily viewer magnification, x
-
Display
Guy
AMOLED
Resolution, pixels
1024x768
Beam performance
Detection radius, m
1350
Laser rangefinder
Safety class for laser equipment according to IEC 60825-1:2014
1
Wavelength, nm
905
Max measuring range, m
1000
Measurement accuracy, m
± 1
Video recorder
Video / photo resolution, pixels
-
Video/photo format
-
Built-in memory, GB
-
Built-in memory capacity
-
Wifi
Standard
-
Frequency, GHz
-
Line of sight reception range, m
-
Environmental characteristics
Degree of protection, IP code (IEC60529)
IPХ7
Operating temperature range, °С
-25 - +40
Connections and compatibility
Support, guy
-
Remote control
-
Diet
Output voltage, V
3.0 - 4.2
Battery type
Li-Ion Battery Pack APS5
Capacity, mAh
4900
Battery life (at=22°C), h *
-
External Power Supply, V
5V
Weight and size
Body material
-
Dimensions, mm
167x74x73
Weight kg
0.4
